Model 130 & 135 / Paired swinging FRP door

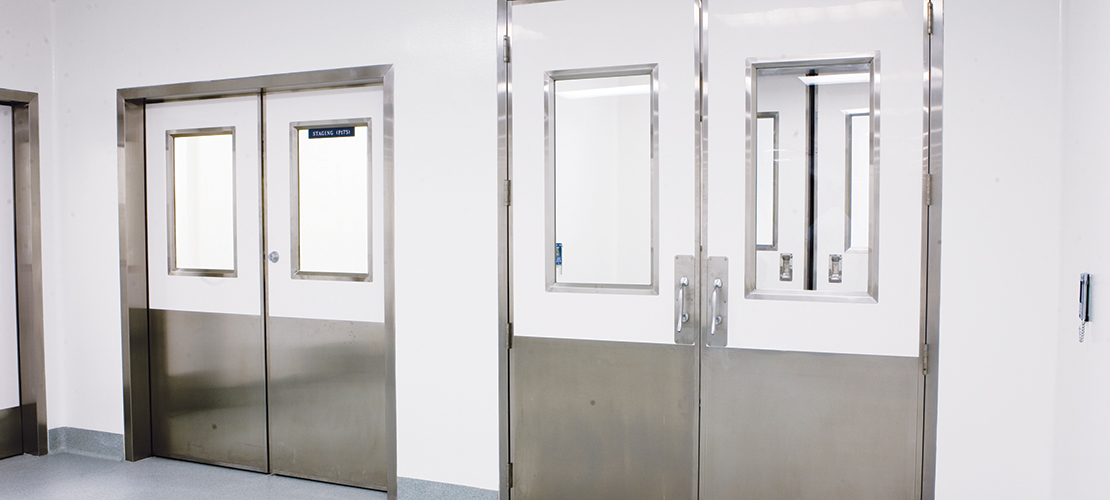

Paired Swing Doors

Maximum strength and Cleanability

These FRP paired swing doors with smooth, durable panels, finished edges and reinforced hardware locations is designed to look great and provide reliable operation even in wet or corrosive environments. Face welded, 16 ga., 304 #4 stainless steel frame provides maximum strength, cleanability and corrosion resistance for a number of applications.

Request a Quote

Technical Documents
Resource Center

Door Sizes

  • Maximum: 8' x 9' (Other sizes available - consult factory)

Construction

  • 1-3/4” thick fiberglass panel surface with finished edges of reinforced fiberglass
  • All hinge locations reinforced with solid resin impregnated fiberglass
  • Hardware locations reinforced with 1/4” thick solid fiberglass
  • Standard white color (other colors available upon request)
  • 16 ga., 304 #4 stainless steel, face welded and polished
  • Available in either single or double rabbet construction
  • Prepped for a wide variety of hardware options

Hardware

  • Grade 1 Architectural hardware standard
  • Hager BB1191 standard weight stainless steel fully mortised hinges
  • LCN 4041 heavy-duty closer
  • Stainless steel push/pull hardware
  • Frame mounted, three sided bulb type perimeter gasket and bottom sweep gasket

Features

  • Manual open with standard spring assist closer
  • Power operation utilizing an electromechanical operator, microprocessor controlled in 120 volt, single phase, with mechanical spring close
  • Overhead presence sensor to provide threshold and swing side obstruction detection
  • Activation device to open; time delay to close
  • In case of power failure, door can be opened manually

Options

  • Vision panel with standard sloped frame
  • UL fire rated
  • Knock-down or chemically welded fiberglass frame
  • All stainless steel construction available in 316L
  • 14 ga. stainless steel frames
  • Stainless steel clad panel (Fire rated and non-rated)
  • Custom designed interlocking system
  • Hospital stops 4” or 6”
  • Stainless steel closer cover
  • Can provide any major lines and grades of architectural hardware
  • Touchless wall-mounted activation switch (Power Models Only)
  • Actuators: Variety of activation devices available (Power Models Only)

Warranty

  • Two year limited warranty on all components
