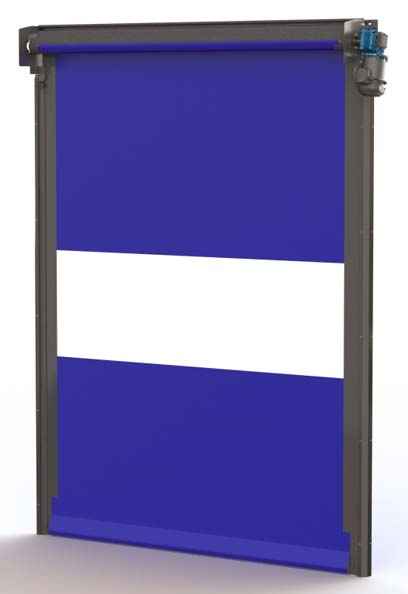

Model 215 / 215 High-Performance Utility Fabric Door

Model 215

High-Performance Utility Fabric Door

The uncompromising blend of high-performance and value.

The 215 High‐Speed Roll‐Up® fabric door provides all the quality and performance expected of an ASI Doors door system in a budget friendly package. Strict regulation and competitive market forces have put increasing pressure on facility budgets; performance and value have become inseparable key words for manufacturers. The 215 High‐Speed Roll‐Up® blends these requirements along with the trusted ASI Doors brand quality that is known across numerous industries.

Superior aesthetics, uncompromising quality, exceptional reliability,and unmatched value define the 215 High‐Speed Roll‐Up® door.

Request a Quote

Curtain Construction

  • 12' x 12' maximum door size
  • .030 antimicrobial UV‐resistant PVC material
  • White or blue standard (Others available)
  • Full flexible panel
  • No rigid bars or internal framework
  • Soft bottom with integrated wireless reversing edge
  • Dual‐blade lintel seal

Frame & Shroud Construction

  • Galvanized steel side frames with covers
  • Engineered for easy wipe‐down/washdown
  • Integrated retention & seal system
  • Maximum durability for high‐traffic areas
  • Available as 304/316 stainless steel or white metal
  • Slim 12” head projection from the wall

Operator Features

  • Efficient high‐performance 1 HP electric motor
  • 120/208/230V single‐phase or 208/230/460/575V three-phase
  • Single photo eye system included as standard
  • Bottom edge sensor to monitor curtain travel & reverse if obstructed
  • Absolute encoder position control
  • Adjustable open & close speeds

Available Options

  • 28" high, full width, clear PVC vision panel
  • Pre‐announce to close (auditory or illuminated)
  • Multiple activation options available
  • Multi‐door interlock configuration
  • Remote reversing edge receiver for areas with poor signal
  • Motor placement available on the right or left‐hand side

Warranty

  • One year limited warranty on all components
